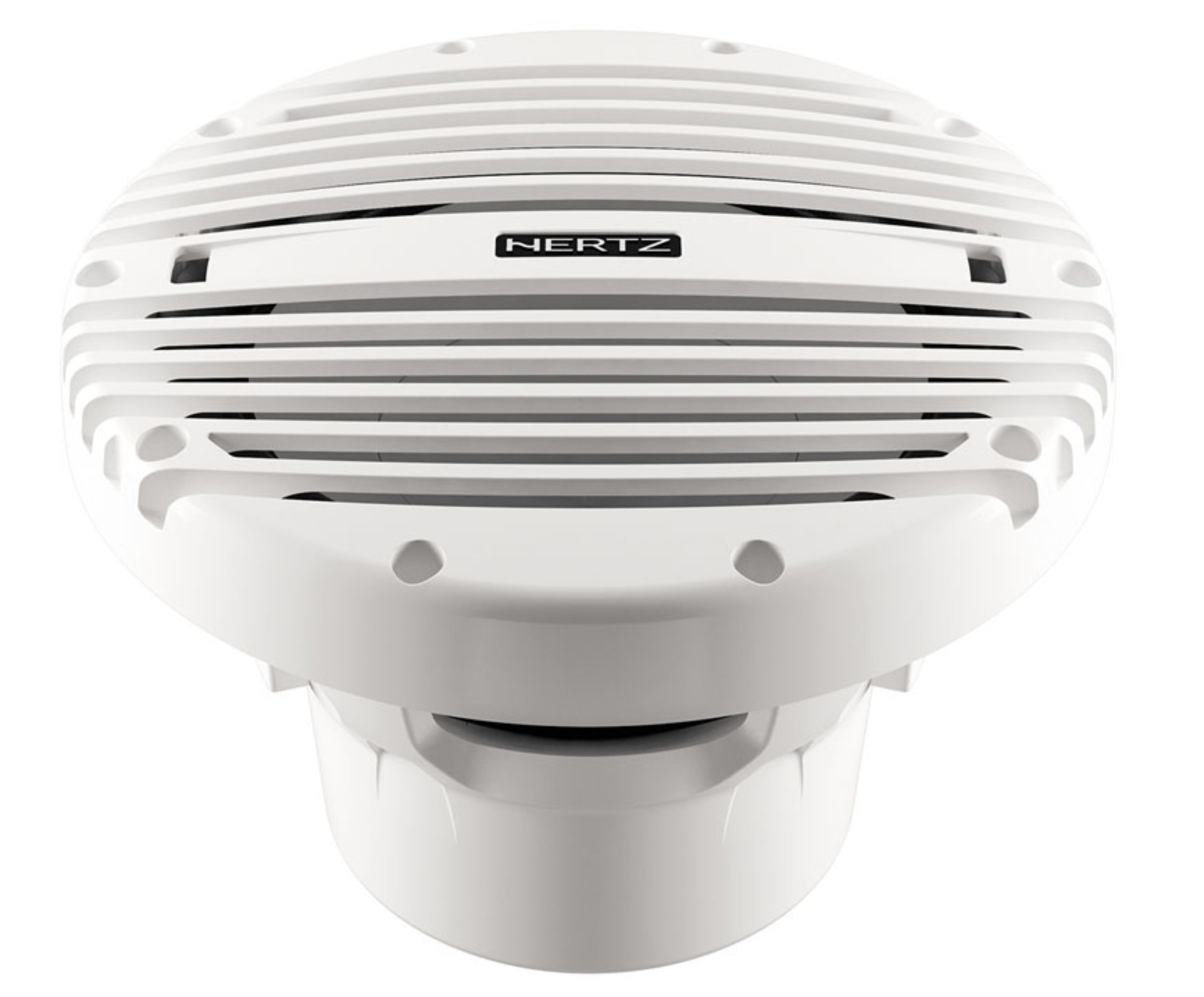

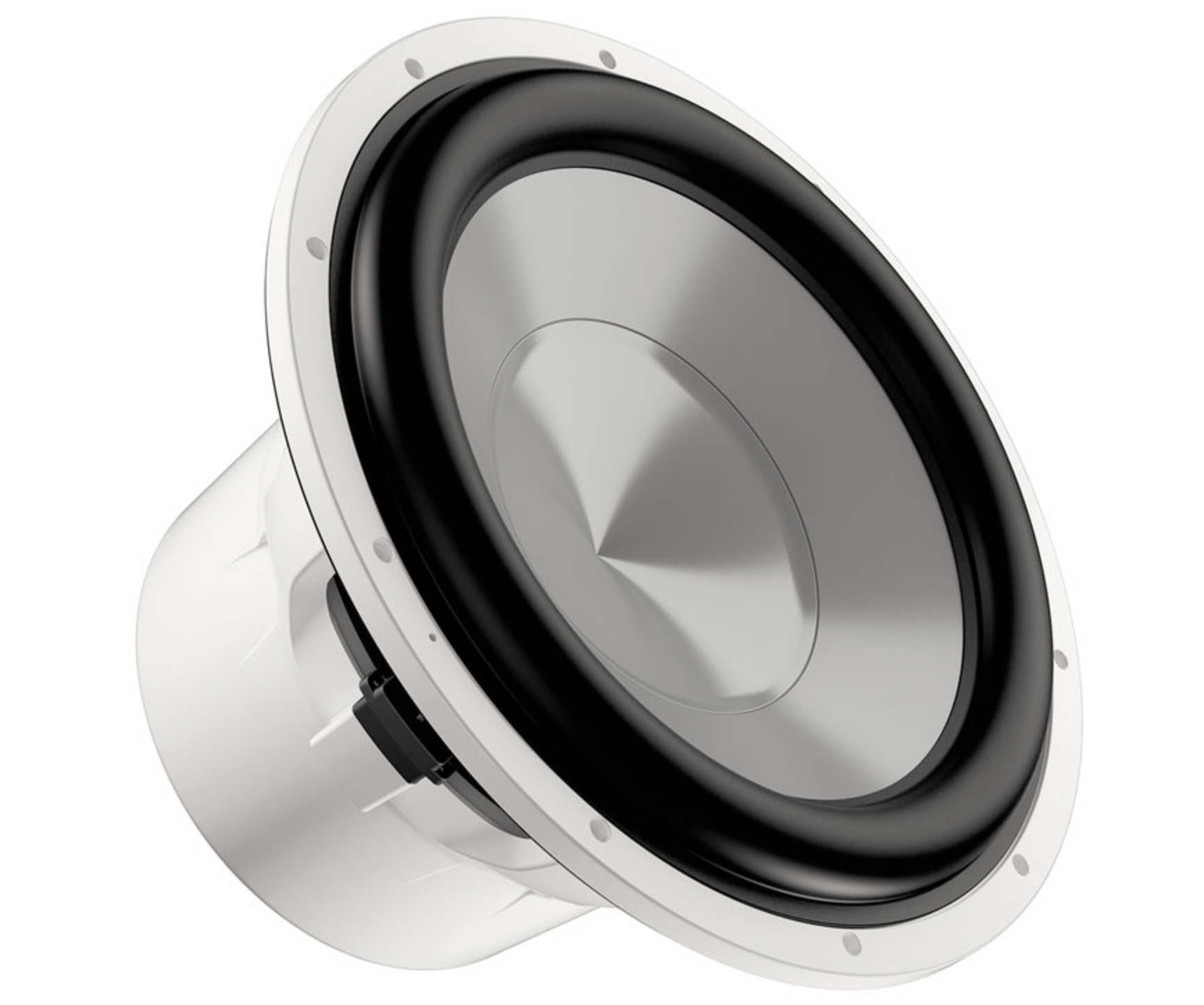

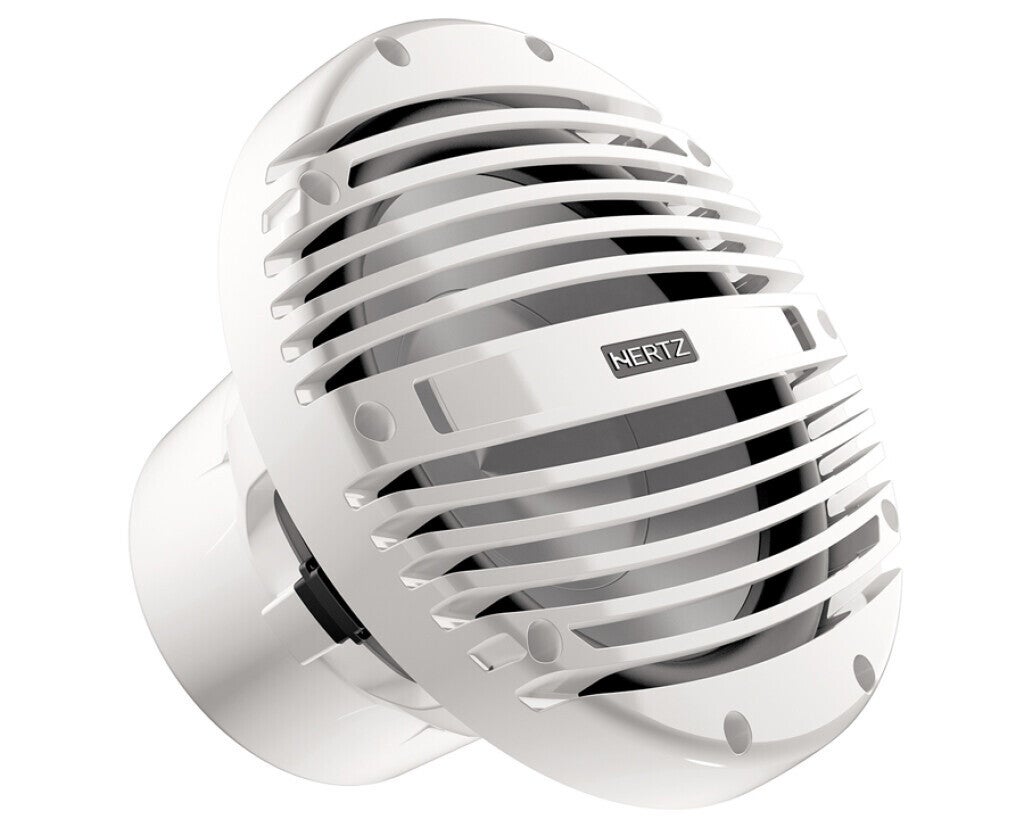

Hertz SUBWOOFER HMS 10 B - 10" 4Ohm Marine Wit

€ 227,48
Artikelnummer: 8018823121583

Hertz Subwoofer HMS 10 B - 10" Wit

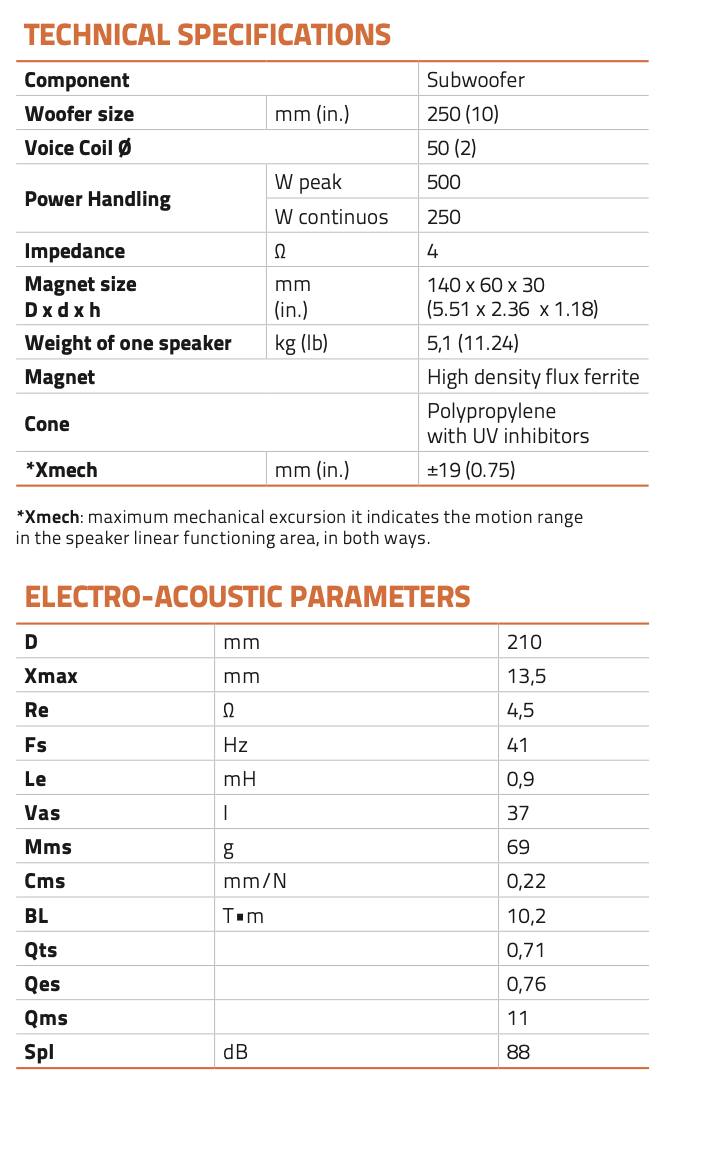

Technische specificaties:

Size mm (in.) 250 (10)

Power Handling - Continuous W 250

Power Handling - Peak W 500

Impedance Ohm 4

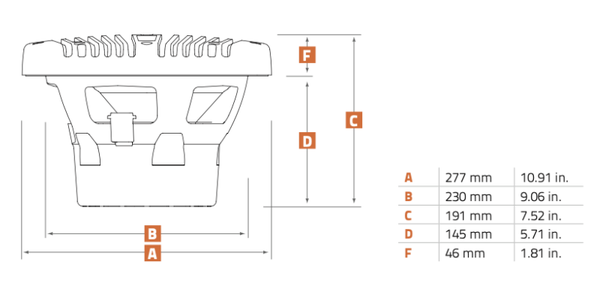

Depth mm (in.) 191 (7.52)

Voice Coil Typesingle

No Filter ComponentSUBWOOFER

Voice Coil Ø50 (2)

Magnet size D x d x h mm (in.) 140 x 60 x 30 (5.51 x 2.36 x 1.18)

Weight of one component kg (lb.) 5,1 (11.24)

MagnetHigh density flux ferrite

ConePolypropylene with UV inhibitors

Xmech mm (in.) ±19 (0.75)



Electro-Acoustic Specificaties:

D mm 210

Xmax mm 13.5

Re Ohm 4.5

Fs Hz 41

Le mH 0.9

Vas I 37

Mms g 69

Cms mm/N 0.22

BL T*m 10.2

Qts0.71

Qes0.76

Qms11

Spl dB 88
