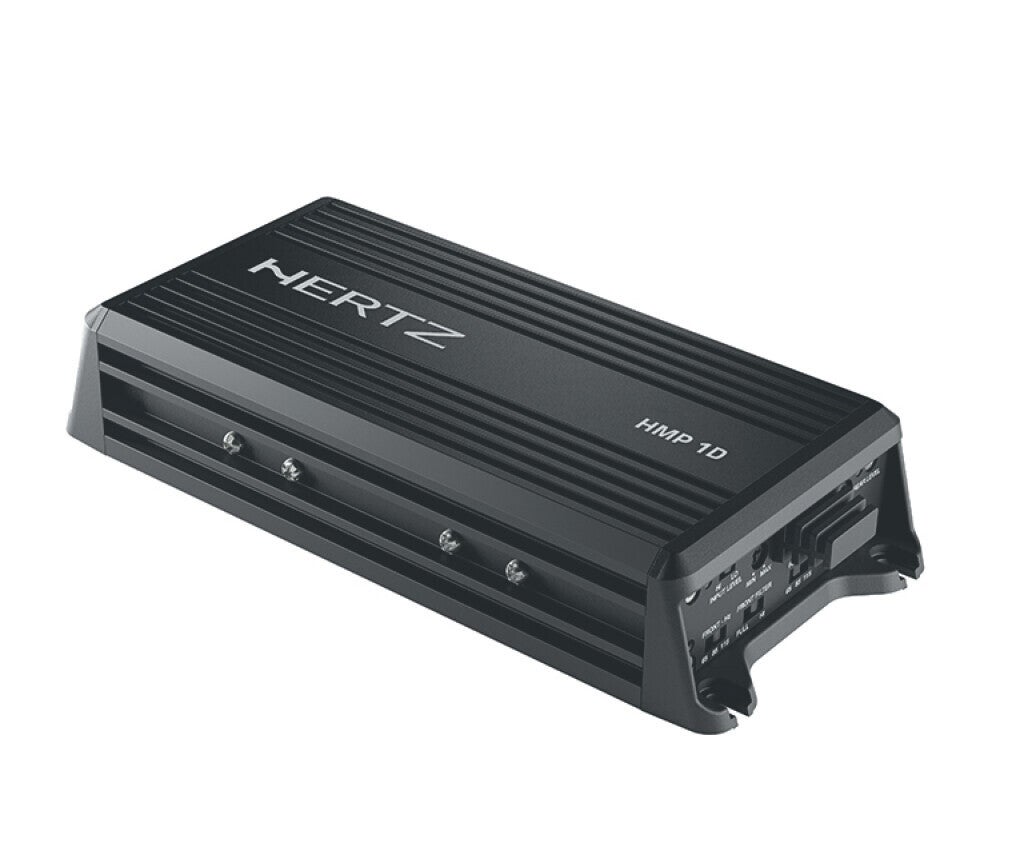

Hertz versterker HMP 1D - Marine

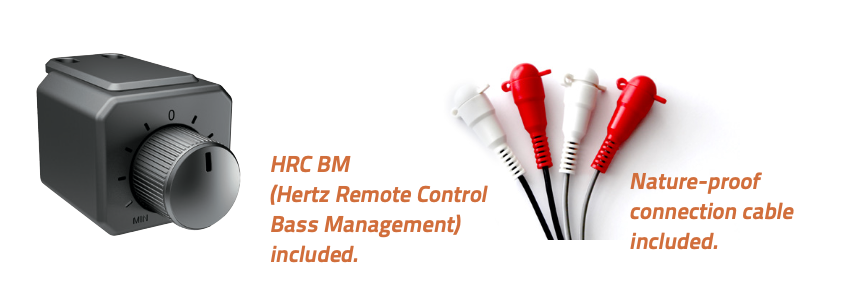

Hertz HMP 1D - Marine & Powersport versterker + Bass Remote controler

D-Class Mono AMPL

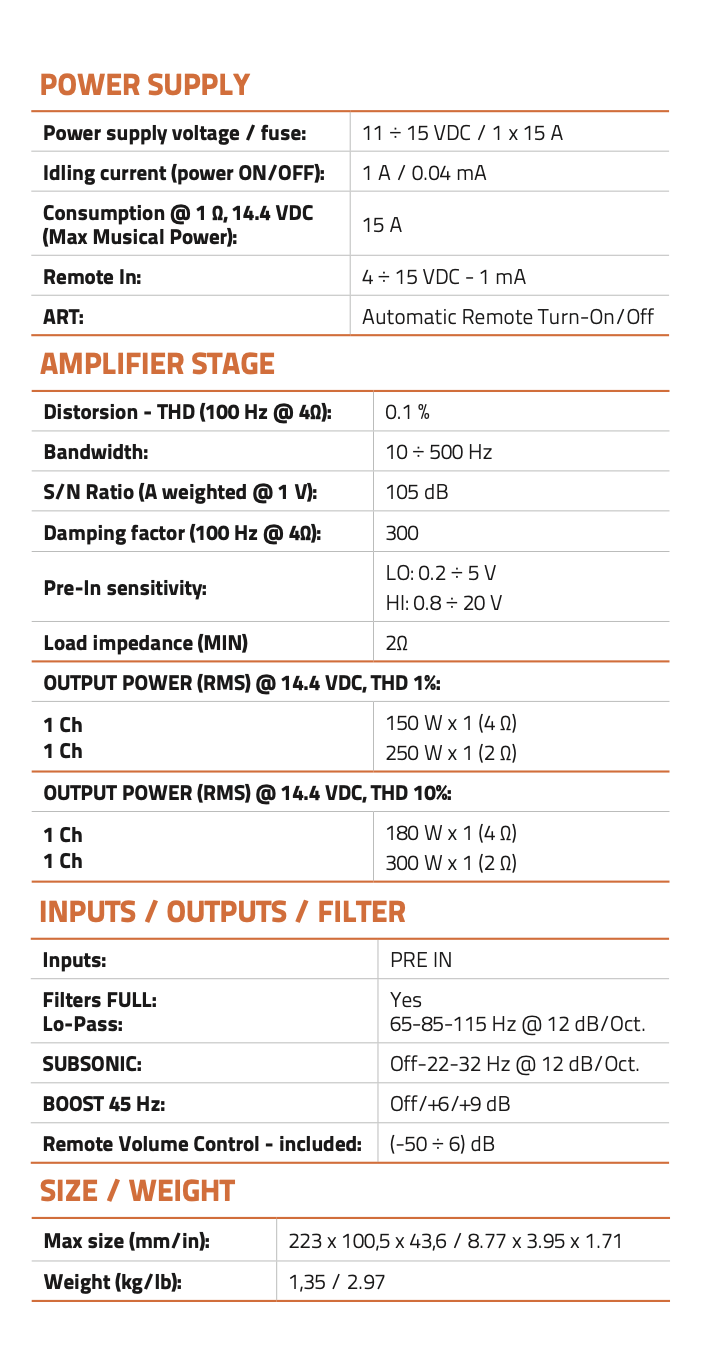

Algemene gegevens:

Channels1

Power Supply

Power supply voltage / fuse:11÷15 VDC / 1 x 15 A

Idling current (power ON/OFF):1 A / 0.04 mA

Consumption @ 2Ω, 14.4 VDC (Max Musical Power):15 A

Remote In:4 ÷ 15 VDC - 1 mA

ART :Automatic Remote Turn-On/OffAmplifier Stage

Distortion - THD (100 Hz @ 4Ω):0.1 %

Bandwidth:10 ÷ 500 Hz

S/N Ratio (A weighted @ 1 V):105 dB

Damping factor (100 Hz @ 4Ω):300

Pre-In sensitivity:LO: 0.2 ÷ 5 V HI: 0.8 ÷ 20 V

Load impedance (MIN) @ 2 Ch:2Ω

Max size (mm/in.):223 x 100.5 x 43.6 / 8.77 x 3.95 x 1.70

Weight (kg/lb.):1.35 / 2.97

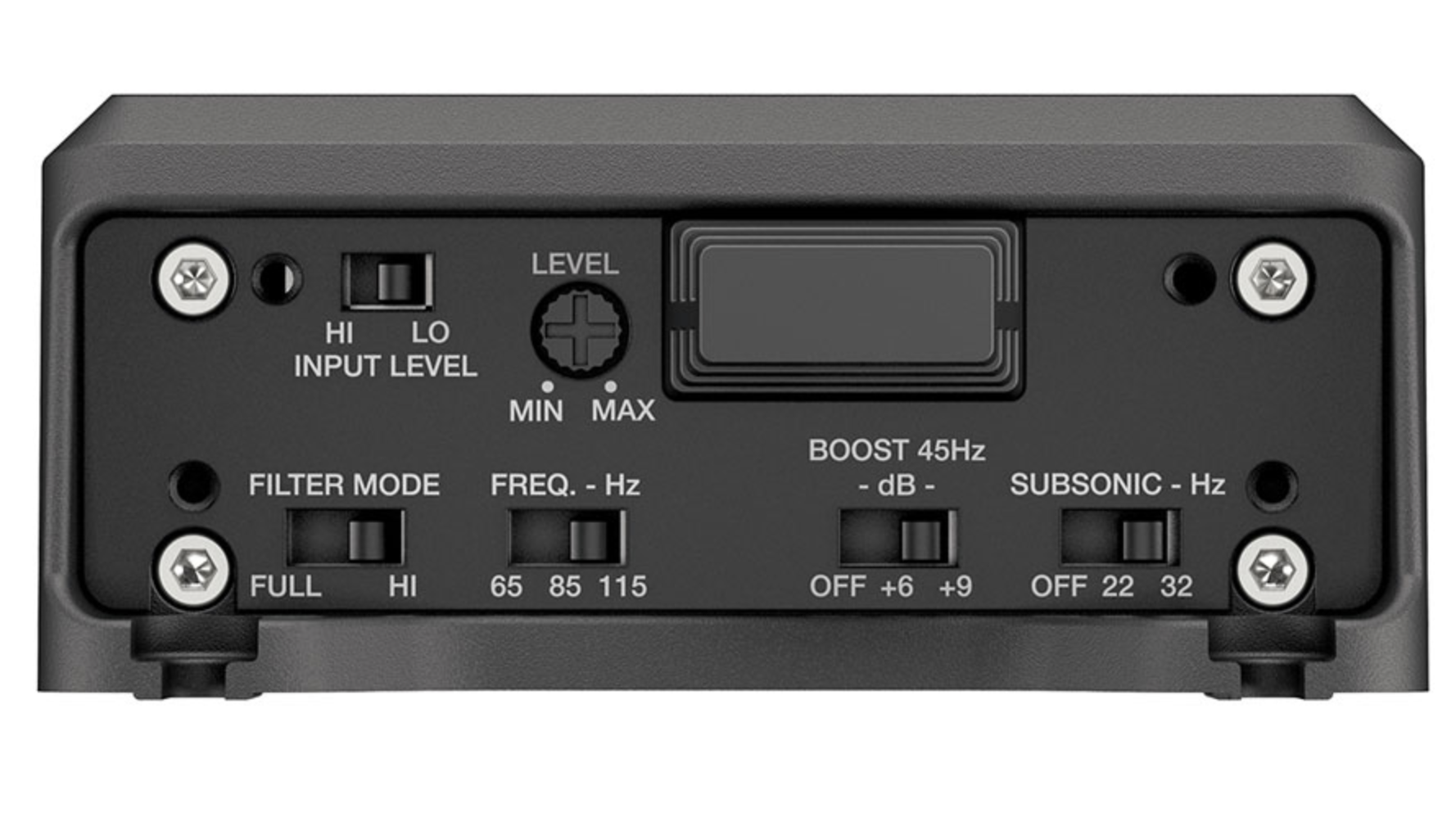

Adjustable Crossovers yes

Output Power:

Output Power (RMS) @ 14.4 VDC, THD 1%:

1 Ch:150 W x 1 (4Ω)

1 Ch:250 W x 1 (2Ω)

Output Power (RMS) @ 14.4 VDC, THD 10%:

1 Ch:180 W x 1 (4Ω)

1 Ch:300 W x 1 (2Ω)

Total Power RMS 300 W
